PIXAR Plus7 Electric Bike - Fat Tyre and Comfort
Key specifications
- Motor
- 500W
- Battery
- 48V 10.4Ah / 20.4Ah
- Maximum speed
- 25km/h; 32km/h unlocked
- Range
- 35–45km (10.4Ah)
- Tyres
- 20 × 3in Chaoyang
- Brakes
- Mechanical disc brakes

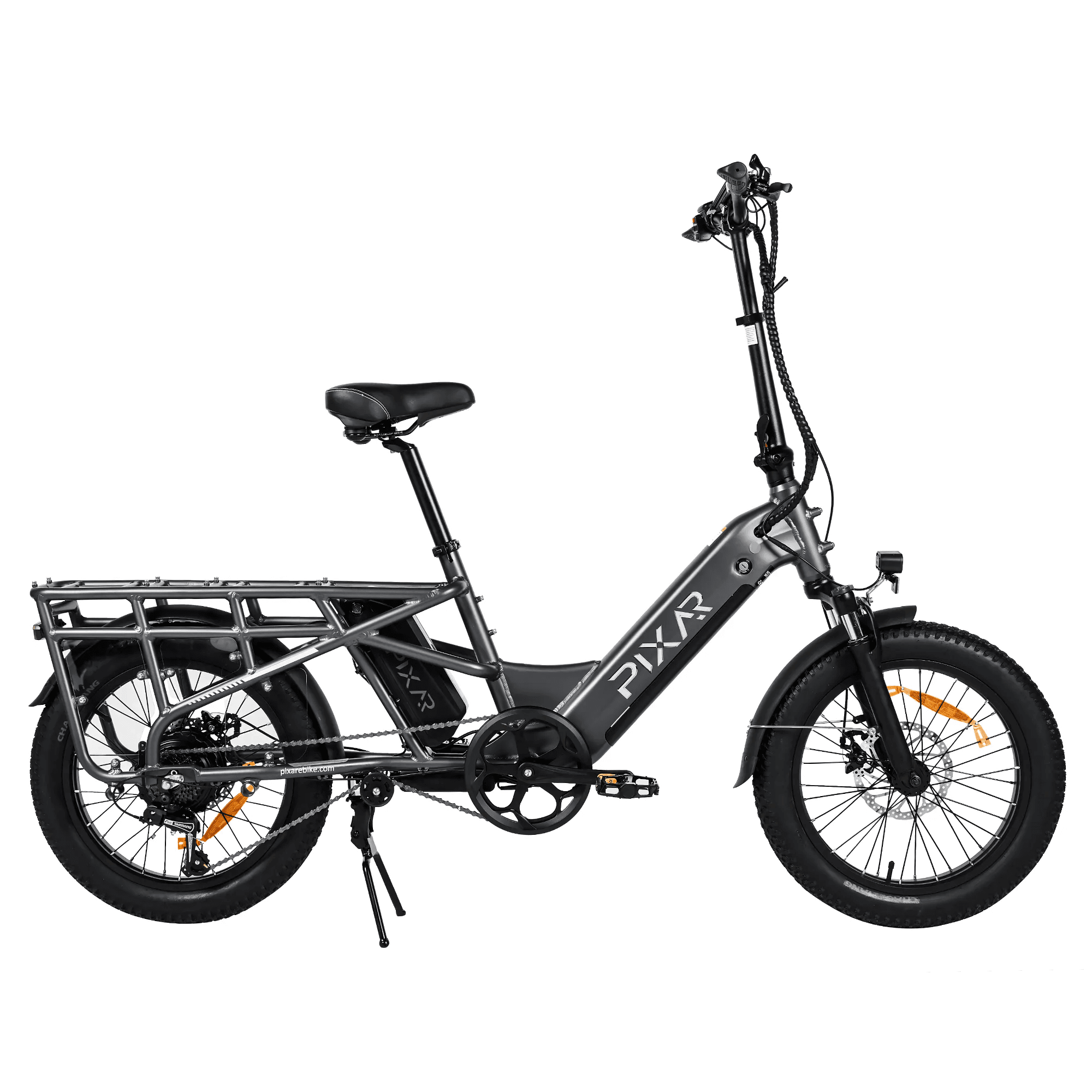

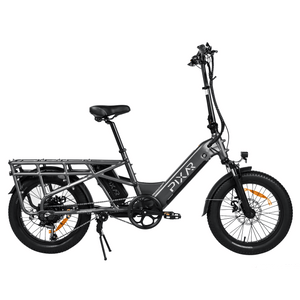

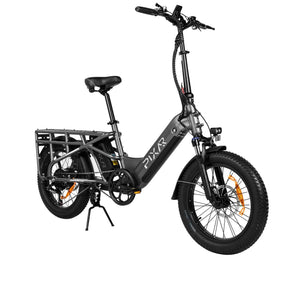

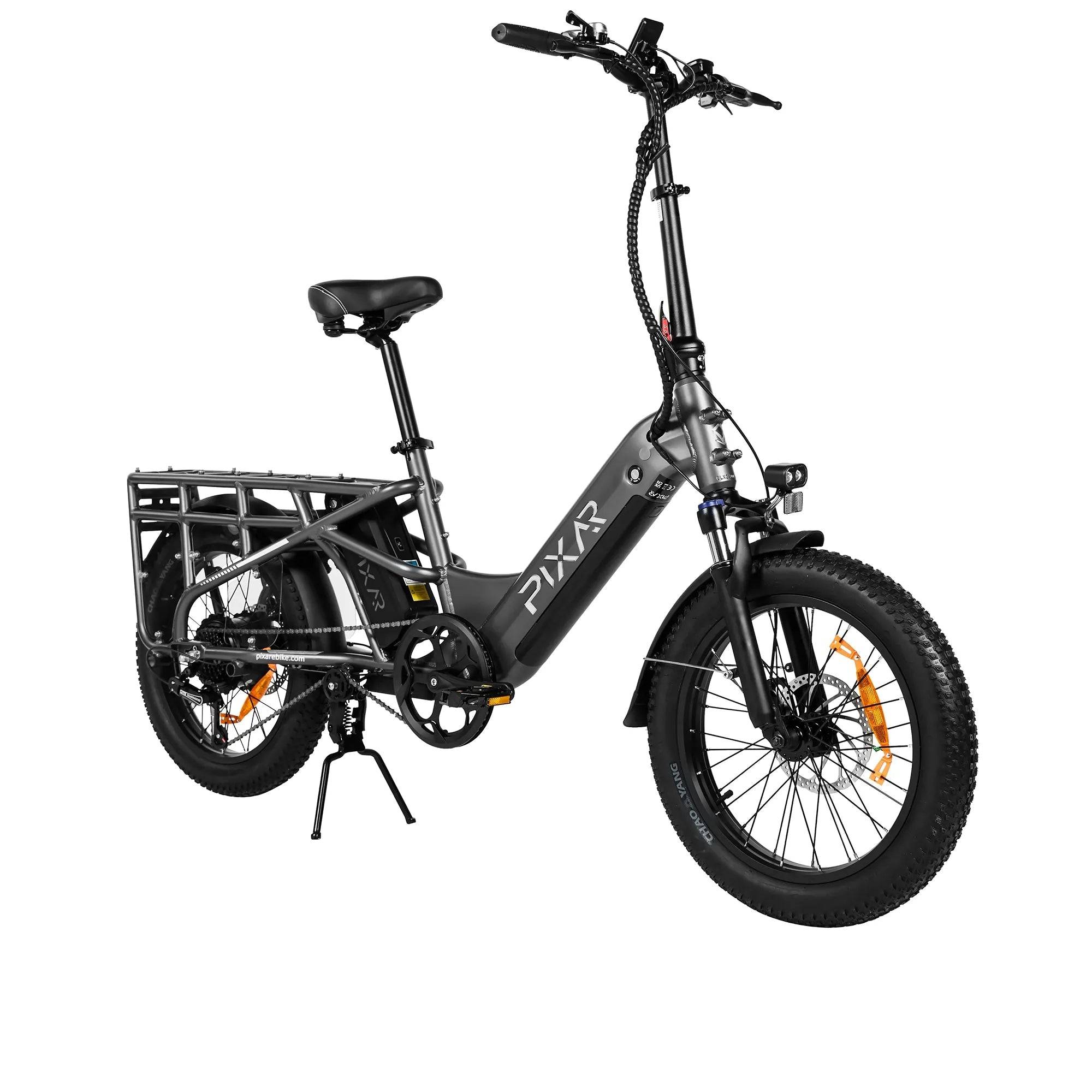

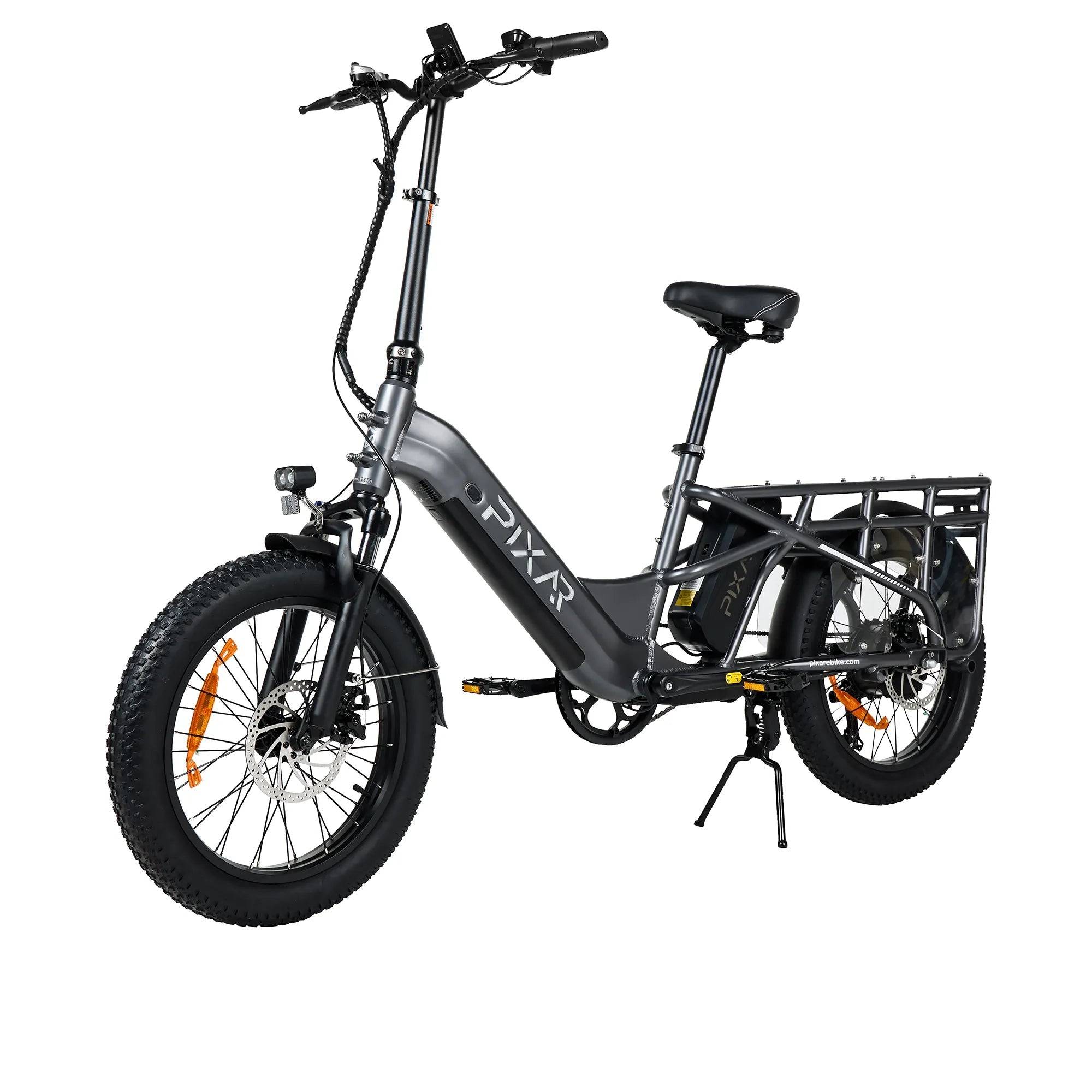

PIXAR Plus7 20-Inch Fat Tyre Electric Bike
The PIXAR Plus7 combines a low-step aluminium frame, 20 × 3-inch fat tyres and an extended rear rack. Its 500W rear-hub motor, front suspension and Shimano 7-speed gearing make a practical platform for carrying essentials and enjoying leisure rides.
Choose your battery capacity
Choose 48V 10.4Ah or 48V 20.4Ah total battery capacity. The 10.4Ah option provides approximately 499Wh; the 20.4Ah option provides approximately 979Wh. Both are offered in Grey.
Five pedal-assistance levels let you adjust the motor support, while a multifunction LCD displays ride information. The factory speed setting is 25km/h, with an unlocked setting of up to 32km/h.
Comfort and carrying space
The low step makes mounting easier, while the front suspension fork and wide Chaoyang tyres help absorb uneven surfaces. An extended rear rack provides carrying space, with front and rear lights and mudguards included. Optional baskets are not included.
Product photographs show the larger battery configuration. The battery capacity supplied is the option selected when ordering.
Technical specifications
| Model | PIXAR Plus7 |
|---|---|
| Colour | Grey |
| Motor | 500W rear-hub motor |
| Battery | 48V 10.4Ah or 48V 20.4Ah, as selected |
| Estimated range | 35–45km estimated for the 10.4Ah option |
| Factory speed setting | 25km/h |
| Unlocked speed | Up to 32km/h |
| Pedal assistance | Five levels with a speed sensor |
| Display | Multifunction LCD |
| Gearing | Shimano 7-speed |
| Tyres | 20 × 3-inch Chaoyang fat tyres |
| Suspension | Front suspension fork |
| Brakes | Front and rear mechanical disc brakes |
| Frame | 6061 aluminium alloy step-through frame |
| Equipment | Front and rear lights, mudguards and rear rack |
| Charger and charging time | 54.6V 2A charger; approximately 5.2 hours for the 10.4Ah battery |
| Water resistance | IP54 |
| Maximum load | 120kg |
| Baskets | Optional; not included |
Frequently asked questions
Which colour is available?
The PIXAR Plus7 is available here in Grey, matching the official PIXAR UK colour option.
Which battery capacities can I choose?
Choose 48V 10.4Ah or 48V 20.4Ah using the battery selector above. Check your selected capacity before adding the bike to your basket.
Are baskets included?
No. This listing includes the bike's rear rack, but optional front and rear baskets are not included.
What suspension and brakes does it have?
The Plus7 has a front suspension fork and mechanical disc brakes on both wheels.
