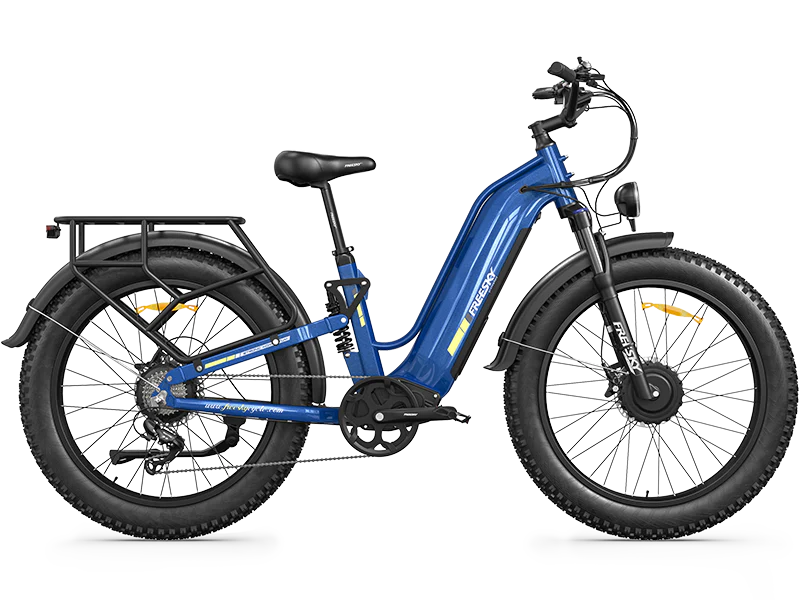

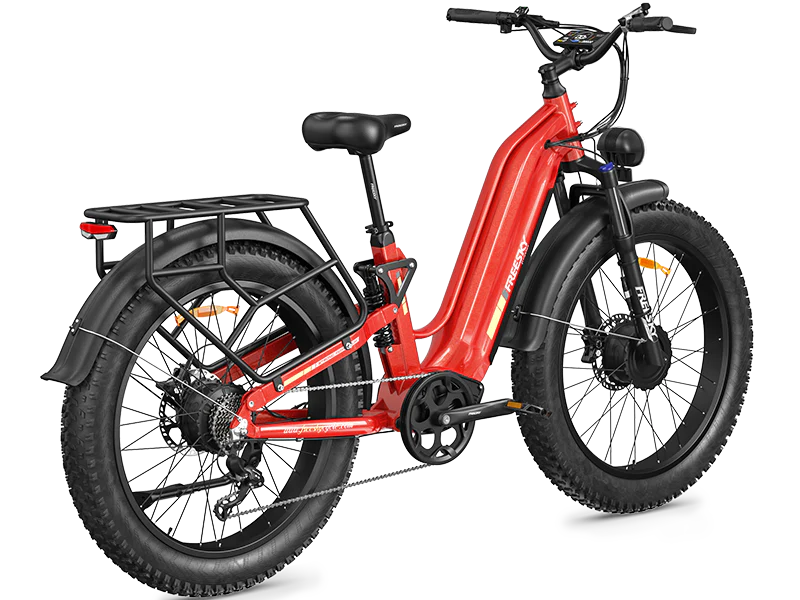

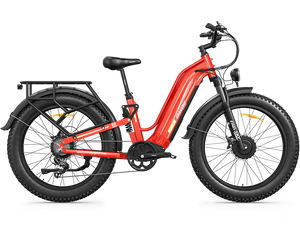

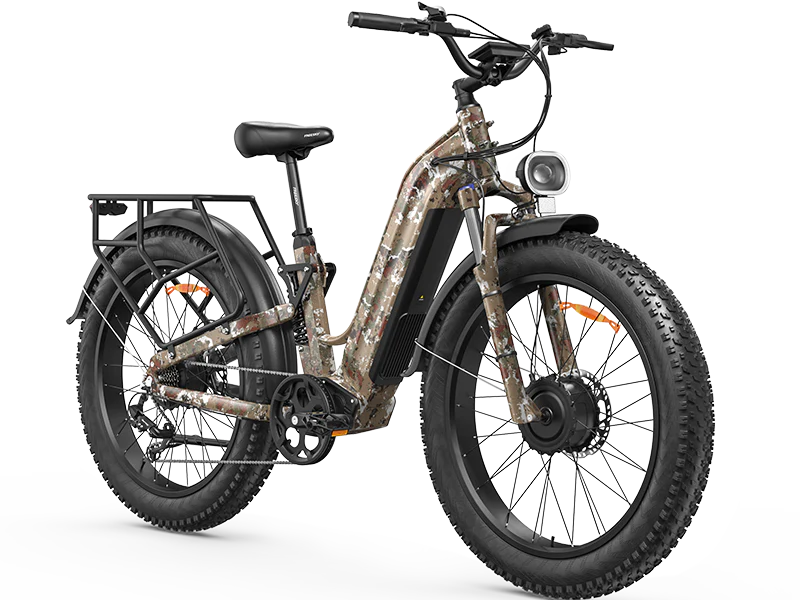

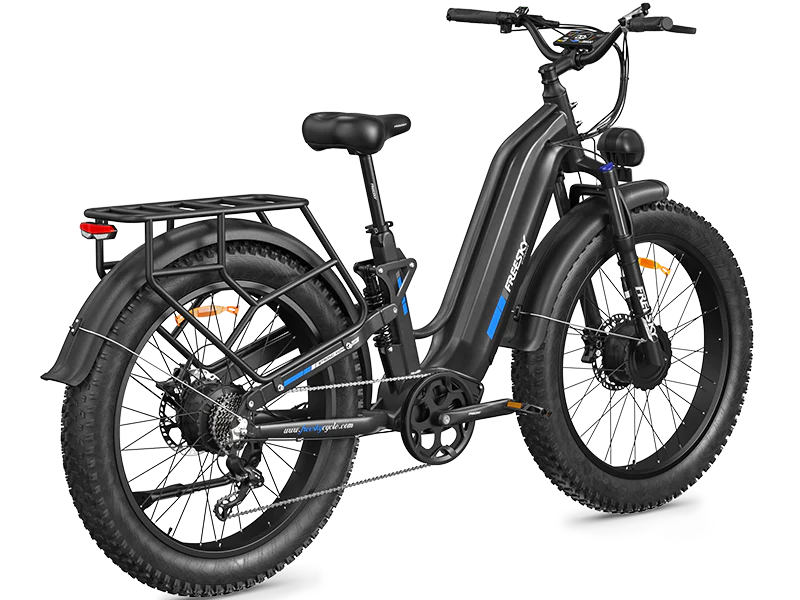

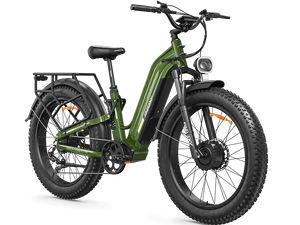

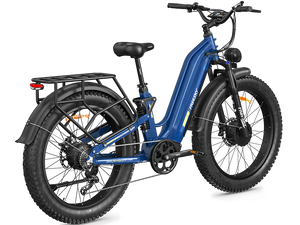

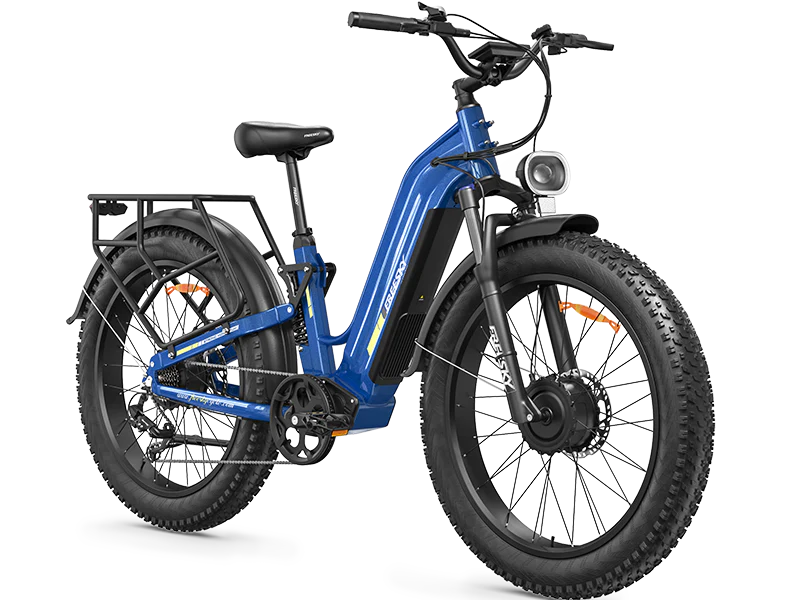

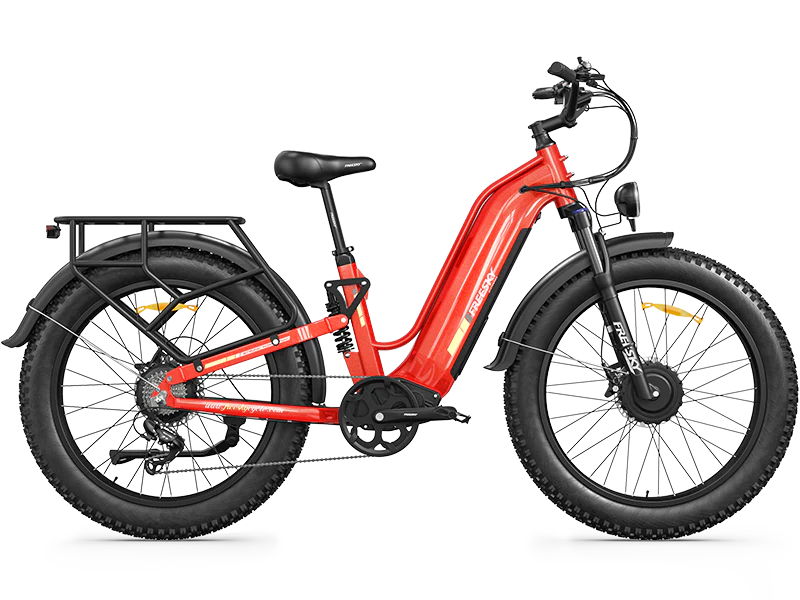

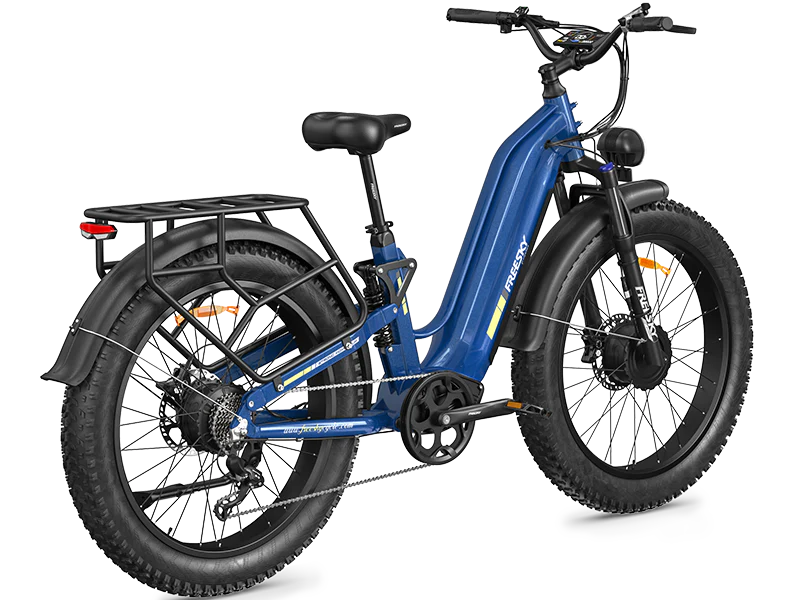

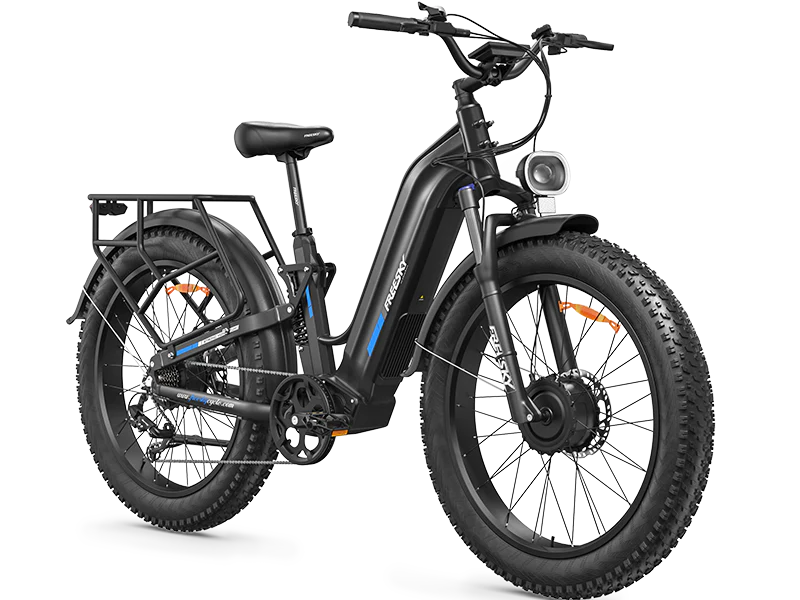

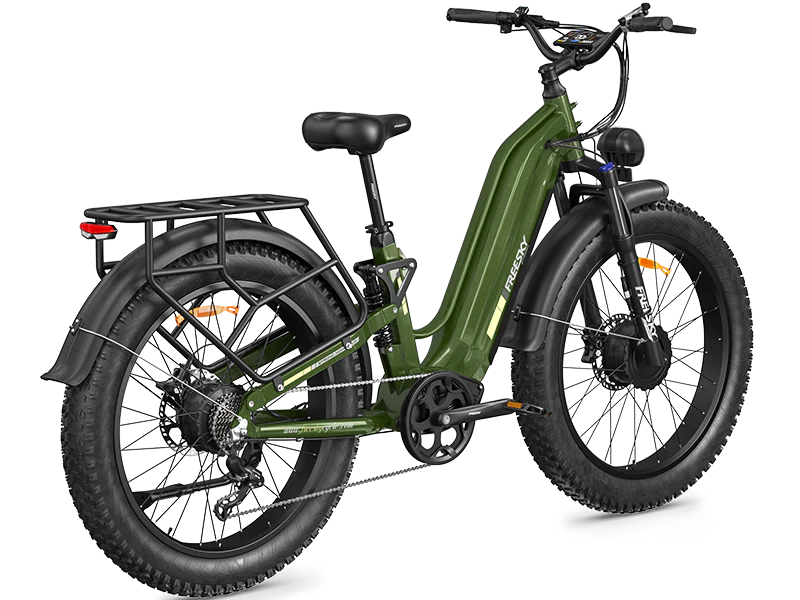

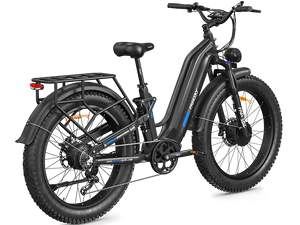

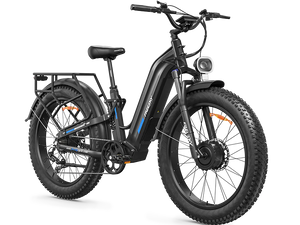

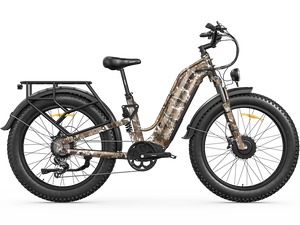

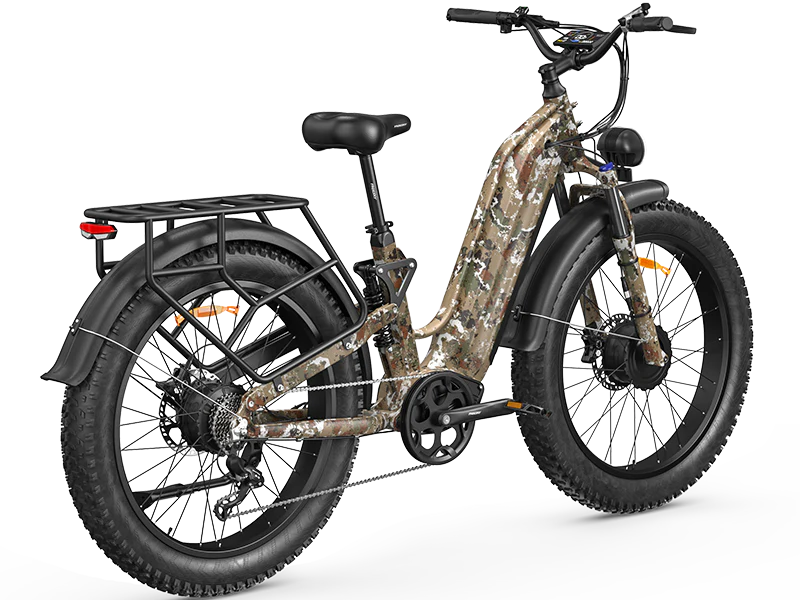

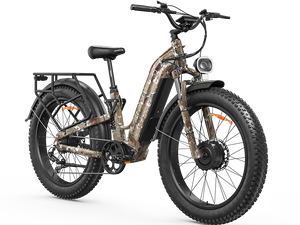

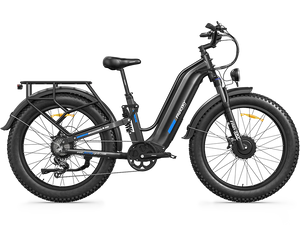

The FREESKY Ranger Air M-540 Electric Bike is a high-power step-through fat-tyre electric bike designed for private-land performance, strong traction, and long-range capability. Featuring front and rear brushless hub motors with a combined 3500W peak output, 200Nm total torque and switchable rear-wheel or dual-motor drive modes, it delivers powerful, controlled assistance across demanding private-land Terrain.
Built around an upgraded 6061 aluminium step-through frame, the Ranger Air M-540 combines a 48V 25Ah lithium battery, front and rear suspension, 26 x 4.0-inch fat tyres, Shimano 7-speed gearing, a thumb throttle, an NFC colour display, and 180mm 4-piston hydraulic brakes for strength, comfort, and confident control.
The Ranger Air M-540 uses dual 1750W peak brushless hub motors, giving a combined 3500W peak output. Each motor delivers up to 100 Nm of torque, providing 200 Nm of total torque for strong climbing support, improved traction, and stable power delivery on private land.
A speed sensor, 0–5 pedal-assist levels, Shimano 7-speed transmission, and thumb throttle provide flexible control across varied private-land riding conditions.
The 48V 25Ah lithium battery provides a large-capacity power system for extended riding sessions. Manufacturer range estimates are approximately 96–152 km in single-motor mode and approximately 64–96 km in dual-motor mode under suitable conditions.
The 26 x 4.0-inch fat tyres provide a wide contact patch for grip, cushioning, and stability across varied private land surfaces. The front and rear suspension systems, including a full-suspension downhill front fork and rear suspension, help reduce vibration and improve comfort over uneven ground.
The upgraded LCD colour display shows key ride data including speed, battery level, mileage and riding mode. The display includes NFC lock/start functionality for quick, secure operation, while the front light supports visibility during use.
The FREESKY Ranger Air M-540 is equipped with 180mm 4-piston hydraulic brakes for strong stopping power and controlled braking modulation. The upgraded 6061 aluminium frame, KMC chain, adjustable heavy-duty aluminium kickstand and reinforced component set support long-term durability.
The bike is UL2849 certified, and the battery system is tested to meet UL-2271 safety requirements.
The NFC colour display enables quick lock and startup functionality. The removable battery design supports convenient charging and secure storage away from the bike, while the low-step frame improves accessibility compared with traditional high-step fat tyre frames.
The included 3A smart charger supports the 48V battery system and charges the battery in approximately 8 hours. A power cable is included.
| Model | FREESKY Ranger Air M-540 |
|---|---|
| Product Type | Step-through dual motor fat tyre electric bike |
| Motor | Dual brushless hub motors, front & rear |
| Peak Motor Power | 3500W combined peak output (1750W + 1750W) |
| Torque | 200Nm total torque (100Nm + 100Nm) |
| Drive Modes | Rear-wheel drive and dual-motor drive modes |
| Sensor | Speed sensor |
| Pedal Assist | 0–5 levels |
| Throttle | Thumb throttle |
| Battery | 48V 25Ah lithium battery |
| Estimated Range | 96–152 km single-motor mode; 64–96 km dual-motor mode |
| Charging Time | Approx. 8 hours |
| Charger | 3A smart charger |
| Transmission | Shimano 7-speed |
| Chain | KMC chain |
| Tyres | 26 x 4.0-inch fat tyres |
| Suspension | Front and rear suspension |
| Front Fork | Downhill full suspension fork |
| Brakes | 180mm 4-piston hydraulic brakes (front & rear) |
| Frame | Upgraded 6061 aluminium step-through frame |
| Display | LCD colour display with NFC lock/start functionality |
| Lighting | Front light |
| Kickstand | Adjustable heavy-duty aluminium kickstand |
| Seatpost | 30.9 x 300mm alloy seatpost |
| Bike Weight | Approx. 43 kg |
| Maximum Load | 136 kg |
| Total Length | 198.1 cm |
| Wheelbase | 127 cm |
| Total Height | 116.8 cm |
| Seat Height | 88.9–104.1 cm |
| Reach | 55.9 cm |
| Wheel Diameter | 73.7 cm |
| Step-Through Height | 45.7 cm |
| Rider Height | 162.6–203.2 cm |
| Inseam Range | 68.6–88.9 cm |
| Certification | UL2849 certified; battery tested to UL-2271 |

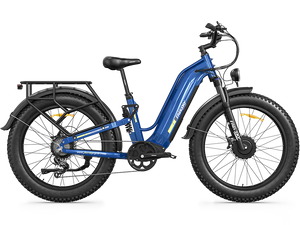

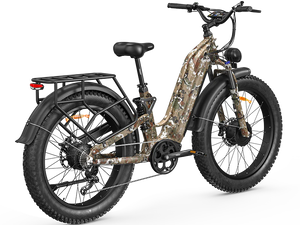

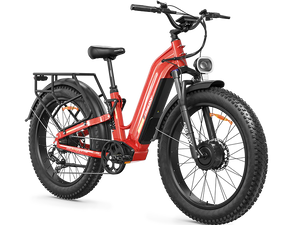

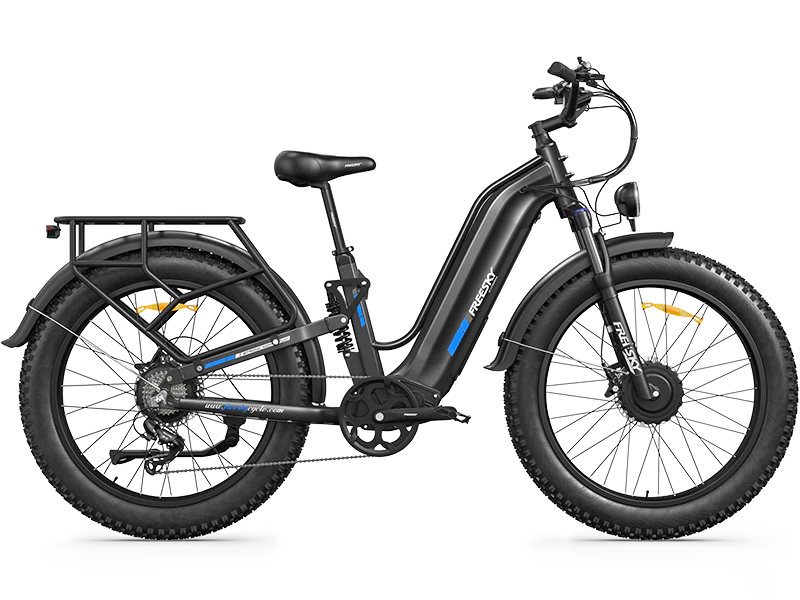

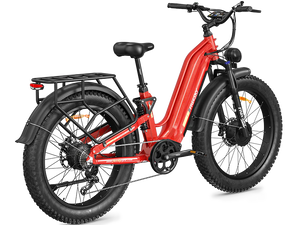

| Colour Options | Black, Blue, Green, Red, Camouflage |
| In the Box | Electric bike, battery, charger, power cable, pedals, multi-tool, user manual, mudguards, rear rack |
Electric Scooters London is an authorised FREESKY reseller and authorised FREESKY repair centre in the UK, offering expert product advice, UK-based support and dependable after-sales service. We supply carefully selected electric bikes with professional guidance, servicing and long-term ownership support.
This electric bike exceeds the UK Electrically Assisted Pedal Cycle (EAPC) limits due to its motor power and/or assisted speed capability. Under UK law, e-bikes over 250W or assisting 15.5 mph are classified as motor vehicles. They cannot be used on public roads, cycle lanes, pavements or other public spaces without full type approval, DVLA registration, insurance and a valid driving licence.
This model is supplied strictly for off-road/private-land use only, with the landowner's explicit permission. Use on publicly accessible land is not permitted.
